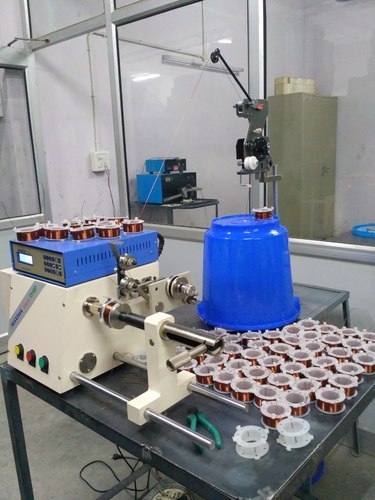

Thick Wire WInding Machine

Thick Wire WInding Machine
Thick Wire WInding Machine
Send Inquiry
Product Code : AEH-01
Brand Name : CCTC
Product Description
Thick Wire WInding Machine is suitable to be used for wire width of up to 3.5mm. It is greatly admired for having high rotation speed which results in mass production in lesser amount of time. This machine comprises a single spindle where core is fitted and wire is coiled around that core with help of torque generated by motor. Offered Thick Wire WInding Machine is controlled with help of microprocessor based system with rotation speed of up to 750 rpm.

Features:

  • Equipped with a frequency controller

  • Easy to use

  • Provided with wire tensioning device on layering arm





    •

    Wire Diameter

    : 0.06 to 3.5 mm

    Winding Width

    : 250 mm

    Bobbin Diameter

    : 280 mm

    Speed

    : 750 rpm /1500(optional)

    Dimension

    : W-890 x D -400 x H-370 mm
